AC Gear Motors

Factory Direct Supply

CE Certified

Single & Three-Phase Options

Variable, Constant, Brake&Torque

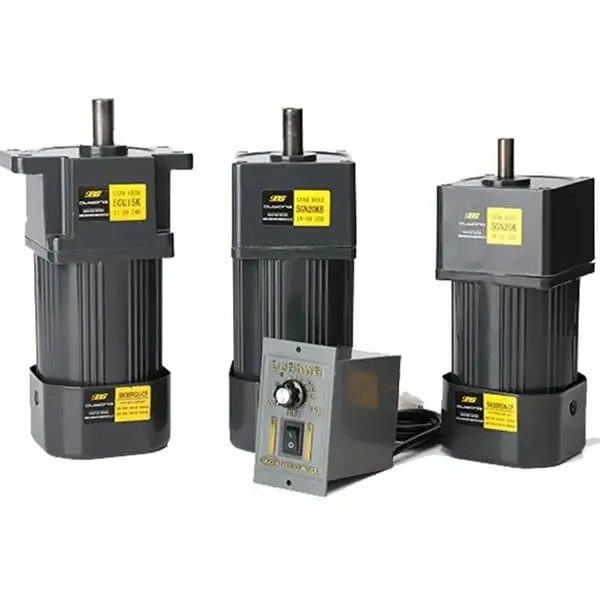

OUBANG AC speed control gear motor with US-52 controller

Our AC Gear Motor Range

Micro AC Gear Motors


  • Variable Speed Motors (6W–400W)
  • Constant Speed Motors (6W–750W)
  • Brake Motors (6W–750W)
  • Torque Motors (3W–40W)

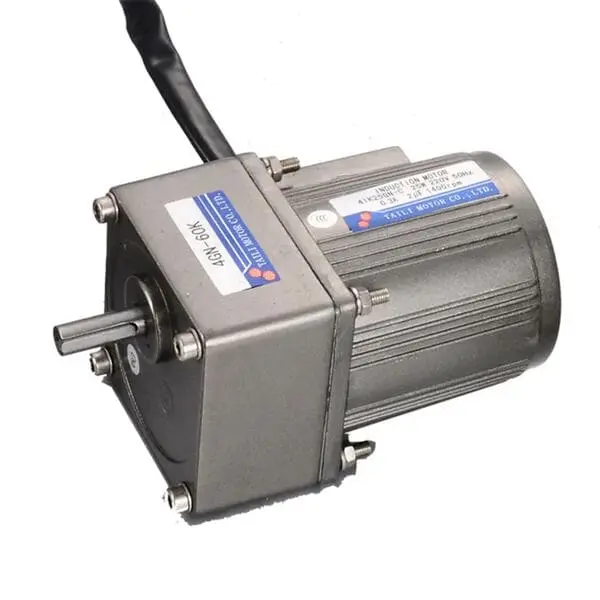

OUBANG 25W AC speed control gear motor with 4GN25K gearbox and speed controller

Small AC Gear Motors


  • Vertical Type
  • Horizontal Type
  • Standard Three-Phase Motors
  • Brake Motors
OUBANG 750W Vertical AC Geared Motor 28mm Output Shaft 10:1 Ratio

Variable Speed Gear Motors

  • Voltage: Single-phase 110V / 220V AC
  • Power Range: 6W–4000W
  • Frame Size: 60–104 mm

Constant Speed Gear Motors

  • Voltage: Single-phase 110V / 220V AC; Three-phase 220V / 380V AC
  • Power Range: 6W–750W
  • Frame Size: 60–120 mm

Brake Motors

  • Voltage: Single-phase 110V / 220V AC; Three-phase 220V / 380V AC
  • Power Range: 6W–750W
  • Frame Size: 60–120 mm

Torque Motors

  • Voltage: Single-phase 110V / 220V AC
  • Power Range: 3W–40W
  • Frame Size: 60–90 mm

OUBANG variable speed AC gear motors, also called AC speed control motors, are available from 6W to 400W. Designed for precise speed regulation, forward/reverse operation, and stable low-speed torque performance, these single-phase motors run on 110V or 220V AC. Standard configurations are paired with a matching gearhead and the US-52 speed controller.

2IK6RGN-C + 2GN10K 6W AC Variable Speed Gear Motor

110V / 220V AC
60 × 60 mm Frame

2GN Gearhead

15W AC variable speed gear motor with 3GN10K gearhead

110V / 220V AC
70 × 70 mm Frame

3GN Gearhead

110V / 220V AC
80 × 80 mm Frame

4GN Gearhead

5IK40RGN-C + 5GN10K 40W AC Variable Speed Gear Motor

110V / 220V AC
90 × 90 mm Frame

5GN Gearhead

5IK60RGN-CF + 5GN12.5KB 60W AC variable speed gear motor

110V / 220V AC
90 × 90 mm Frame

5GN Gearhead

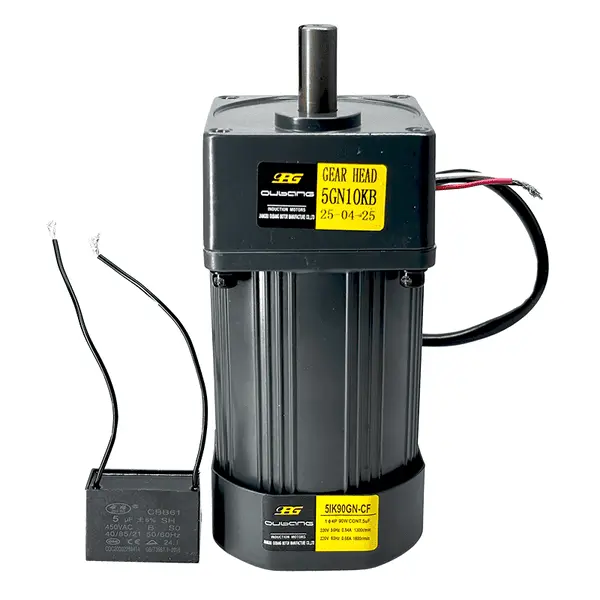

5IK90RGN-CF + 5GN7.5KB 90W AC variable speed gear motor

110V / 220V AC
90 × 90 mm Frame

5GN Gearhead

5ik120RGU-cf-5GU3KB-120w-ac-variable-speed-gear-motor

110V / 220V AC
90 × 90 mm Frame

5GU Gearhead

6IK180RGN-CF-6GN3K 180W SPEED CONTROL MOTOR

110V / 220V AC
104 × 104 mm Frame

6GN Gearhead

6IK200RGN-CF + 6GN3K 200W AC Variable Speed Gear Motor

110V / 220V AC
104 × 104 mm Frame

6GN Gearhead

6ik250rgn-cf-6gn10k 250w ac varivable speed gear motor

110V / 220V AC
104 × 104 mm Frame

6GN Gearhead

OUBANG AC gear motors are widely used in conveying, packaging, labeling and general industrial automation equipment. Typical applications are shown below.

AC gear motor applied in belt conveyor system
AC geared motor used in packaging machine
Speed control AC gear motor for labeling equipment
Industrial AC motor drive for automation system

Factory Strength

In-house manufacturing with gear processing, CNC machining, assembly, and 100% quality testing. Custom orders welcome from 1 piece.

Fast Delivery

Standard models can typically be shipped within 3–7 working days.

Technical Support

3D CAD models, dimension drawings and motor selection support are available for your project.

Custom OEM Options

Custom voltage, shaft dimensions, gear ratios, lead wires, and terminal box configurations are available to match your equipment.

Variable-speed AC gear motors are used with a compatible speed controller to provide adjustable motor speed and forward/reverse operation, while constant-speed AC gear motors operate at a fixed rated speed. The suitable type depends on the required speed control, load and application.

OUBANG micro AC gear motors are available in single-phase 110V / 220V AC and three-phase 220V / 380V AC configurations, depending on the motor type. Power ranges from 3W to 750W for micro-series motors, while small AC gear motor series are available from 100W to 3700W.

Yes. OUBANG AC gear motors can replace existing OEM motors, including Oriental Motor, Panasonic, and other standard Japanese or Taiwanese motor brands, when the voltage, power, frame size, mounting dimensions, output shaft, and gear ratio match. Simply share your current motor photo, nameplate, or dimension drawing for quick verification.

Yes. 2D dimension drawings and 3D CAD models (STEP/IGES files) are available upon request for our AC gear motor series. Our technical team can also assist with motor selection, gearhead matching and installation compatibility.

Explore selected JSCC AC speed control gear motors for equipment replacement, retrofit projects and industrial automation. Browse the models below or contact us for motor selection and cross-reference support.

6W JSCC AC Speed Control Gear Motor

60YT06GV22X
60 × 60 mm Frame
60GK3H–60GK1800H

15W JSCC AC Speed Control Gear Motor

70YT15GV22
70 × 70 mm Frame
70GK3H–70GK1800H

25W JSCC AC Speed Control Gear Motor

80YT25GV22
80 × 80 mm Frame
80GK3H–80GK1800H

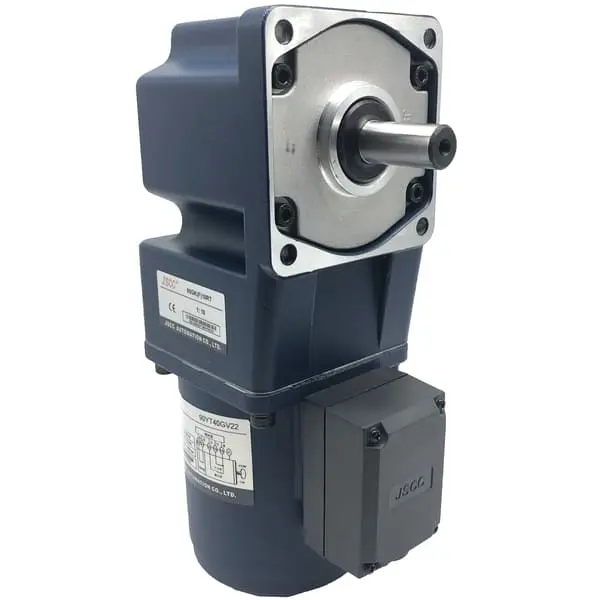

40W JSCC AC Speed Control Gear Motor

90YT40GV22
90 × 90 mm Frame
90GK3H–90GK1800H

60W JSCC AC Speed Control Gear Motor

90YT60GV22
90 × 90 mm Frame
90GF3H–90GF1800H

90W JSCC AC Speed Control Gear Motor

90YT90GV22
90 × 90 mm Frame
90GF3RC–90GF1800RC

120W JSCC AC Speed Control Gear Motor

90YT120GV22
90 × 90 mm Frame
90GF3H–90GF1800H

200W JSCC AC Speed Control Gear Motor

100YT200GV22
104 × 104 mm Frame
100GK3RT–100GK180RT

Explore our complete range of gear motors, gearboxes, drives and motion control products for industrial machinery, automation and replacement applications.
