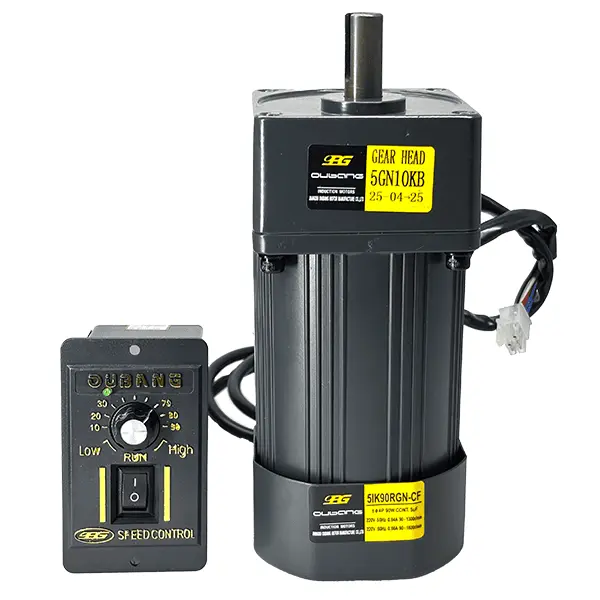

5IK90RGN-CF + 5GN7.5KB 90W AC Variable Speed Gear Motor
The 5IK90RGN-CF is a 90W single-phase AC variable speed motor with a 90 × 90 mm frame and 220V input. When paired with a 5GN7.5KB gearhead and US-52 speed controller, it provides smooth adjustable-speed control and reliable low-speed operation for conveyors, packaging machinery, labeling machines and industrial automation equipment.
Wide Speed Range
Forward & Reverse
Low-Noise Operation
Compact Structure
90W AC Variable Speed Gear Motor Overview
The 5IK90RGN-CF is a compact 90W single-phase AC variable speed gear motor designed for industrial applications requiring adjustable speed, reliable low-speed operation and controlled torque output. When paired with a 5GN series gearhead and US-52 speed controller, it provides a speed control range of 90–1300 rpm at 50Hz and 90–1600 rpm at 60Hz. The 5GN7.5KB configuration shown on this page uses a 7.5:1 reduction ratio for reliable low-speed, high-torque operation.
Fixed-speed induction versions are also available, including the 5IK90GN-CF for single-phase 220V and the 5IK90GN-YF for three-phase 220V / 380V applications. Round-shaft versions include the 5IK90A-CF fixed-speed model, 5IK90RA-CF variable-speed model and 5IK90A-YF three-phase model.
Specifications
| Model | 5IK90RGN-CF |
|---|---|
| Output Power | 90W |
| Voltage | 220V |
| Frequency | 50 / 60Hz |
| Speed Control Range | 90–1300 rpm 50Hz / 90–1600 rpm 60Hz |
| Starting Torque | 4.8 kg.cm |
| Allowable Torque | 7.1 kg·cm 1200 rpm / 2.3 kg·cm 90 rpm |
| Rated Current | 0.64A |
| Certification | CCC, CE |
| Motor Type | Single-phase AC Variable Speed Motor |
Gearbox & Performance
| Gear Ratio | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | 50 | 60 | 75 | 100 | 180 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Speed 50Hz r/min | 500 | 300 | 200 | 150 | 100 | 75 | 50 | 30 | 25 | 20 | 15 | 8.3 |
| Output Speed 60Hz r/min | 600 | 360 | 240 | 180 | 120 | 90 | 60 | 36 | 30 | 24 | 18 | 10 |
| Allowable Torque kg·cm | 16.4 | 27.3 | 41 | 55 | 73.9 | 110 | 148 | 200 | 200 | 200 | 200 | 200 |
Options: The 5IK90RGN-CF motor is compatible with 5GN series gearheads. Gear ratios from 3:1 to 500:1 are available. The 5GN7.5KB configuration shown on this page uses a 7.5:1 reduction ratio. Gearhead output shaft diameters of 12 mm and 15 mm are available.
90W Induction Motor Model Options
Downloads & CAD
Download the 3D CAD model and dimension drawing for this AC gear motor.
3D CAD Model
Dimension Drawing
Wiring Diagrams
Wiring diagrams for the 5IK40 series are shown below for variable-speed, fixed-speed and three-phase motor configurations.
Single-Phase 220V Variable-Speed Motor Wiring Diagram

Single-Phase 220V Fixed-Speed Motor Wiring Diagram

Three-Phase 220V / 380V Motor Wiring Diagram

Applications
Typical applications for 90W AC variable speed gear motors include the following equipment categories.

Conveyors

Packaging Machines

Labeling Machines

Industrial Automation
Selection & Support
Frequently Asked Questions
Need a 90W AC Variable Speed Motor & Controller?
Share your voltage, speed range, gear ratio and application requirements. Our engineers will recommend a matching motor, speed controller and gearbox. AC variable speed motor options are available from 6W to 400W.
