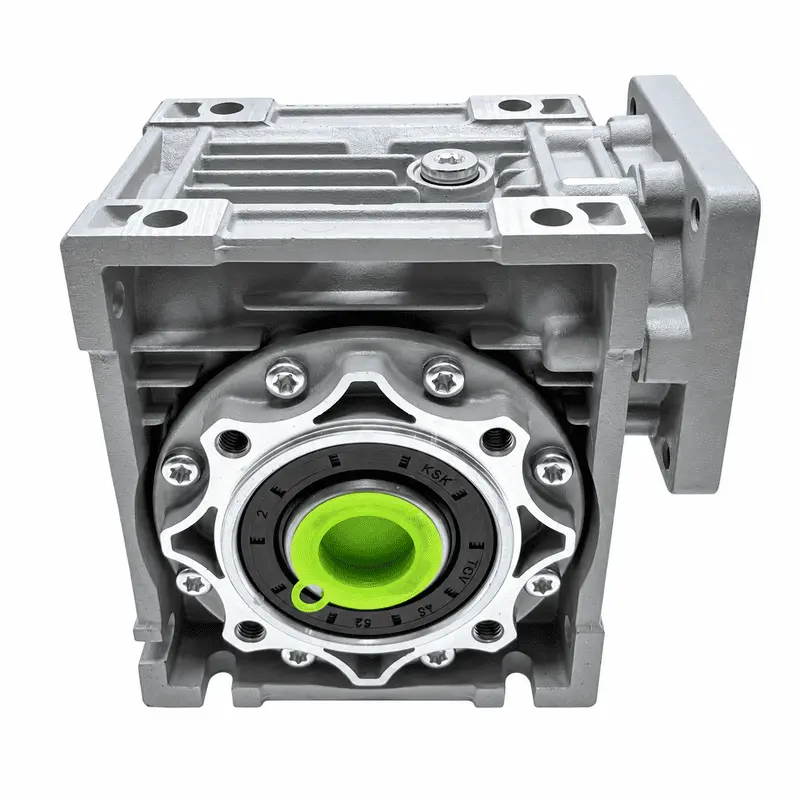

NMRV Square Flange Worm Gearbox 030–090

The NMRV square flange worm gearbox is a compact right-angle worm gear reducer that matches your motor’s square flange and shaft. Available in sizes 030, 040, 050, 063,075, and 090 for OEM equipment, automation systems and replacement projects.

Sizes NMRV030, NMRV040, NMRV050, NMRV063,NMRV075, NMRV090
Square motor flange, matched to your motor
Ratios 7.5:1 to 100:1, 5:1 on request
Hollow shaft, single/double shaft, output flange or torque arm
8 arcmin low-backlash option with CuSn10Pb1 tin bronze worm wheel

Request a Quote

NMRV Gearbox Overview

The NMRV square flange worm gearbox series provides compact right-angle transmission for AC gear motors, brushed DC motors, BLDC motors, stepper motors, servo motors and three-phase induction motors. Sizes 030, 040, 050, 063 and 090 are available with multiple square motor flange and input bore combinations for flexible motor matching.

Output options include hollow shaft, single output shaft, double output shaft, output flange and torque arm configurations. Standard reduction ratios range from 7.5:1 to 100:1, with 5:1 available on request. Tin bronze (CuSn10Pb1) and aluminum bronze worm wheel options are available for different duty requirements, with selected tin bronze configurations achieving backlash down to 8 arcmin.

NMRV Output Configurations

Choose the output type that fits your machine layout, transmission requirements and installation conditions.

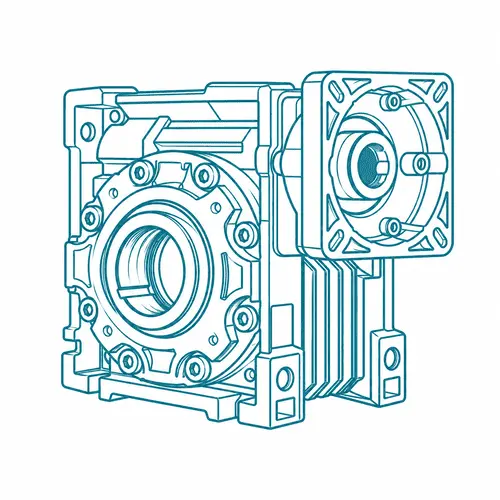

NMRV worm gearbox with hollow output shaft line drawing

Hollow Shaft

Hollow output bore for direct mounting on the driven shaft in compact installations.

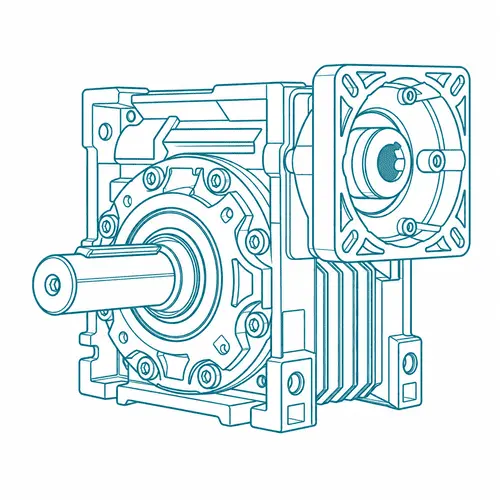

Single Output Shaft

Solid output shaft on one side for couplings, pulleys and sprockets.

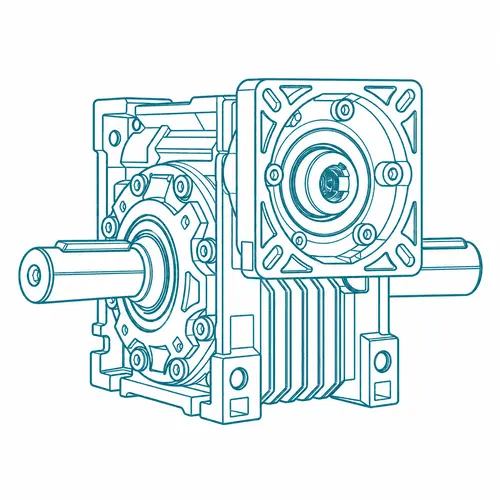

Double Output Shaft

Solid output shafts on both sides for two-sided power transmission.

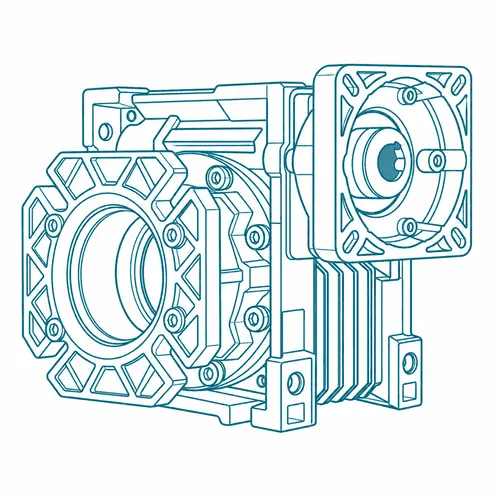

Output Flange

Flange output for compact and rigid direct equipment mounting.

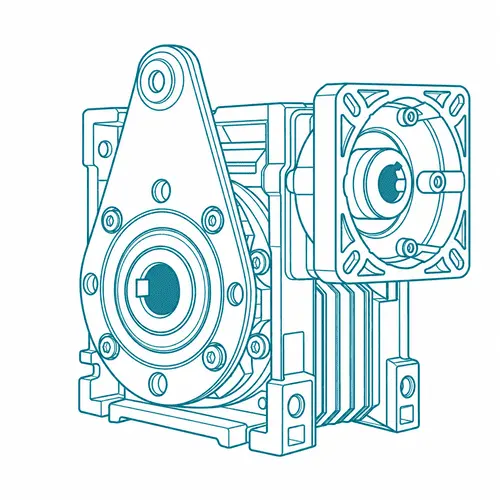

Torque Arm

Torque arm supports shaft-mounted gearboxes against reaction torque.

NMRV Worm Wheel Materials

Two worm wheel material options are available to suit different duty cycles, precision requirements and project budgets.

Premium Choice

Tin Bronze Worm Wheel

Material: CuSn10Pb1 (10-1)

Superior Wear Resistance
Excellent anti-scuffing performance for demanding applications.
Lower Friction
Helps reduce operating temperature and supports longer seal and lubricant life.
Heavy-Duty Operation
Suitable for continuous-duty and high-load applications.
Low Backlash Option
Selected configurations can achieve backlash down to 8 arcmin.

Standard Choice

Aluminum Bronze Worm Wheel

Material: CuAl10Fe3 (9-4)

High Strength
Hard and durable material for general industrial use.
Good Wear Resistance
Suitable for standard operating conditions.
Cost-Effective
Economical choice for general-purpose applications.
Standard Industrial Use
A practical choice for general-duty and intermittent applications.

Which one to choose? Choose tin bronze for continuous duty, high loads or low-backlash requirements. Aluminum bronze is suitable for general-duty and intermittent applications where cost is a priority.

Worm Shaft: 20CrMnTi carburized steel, surface hardness 58–62 HRC, ground for precise meshing and stable operation.

NMRV Gearbox Size & Dimensions

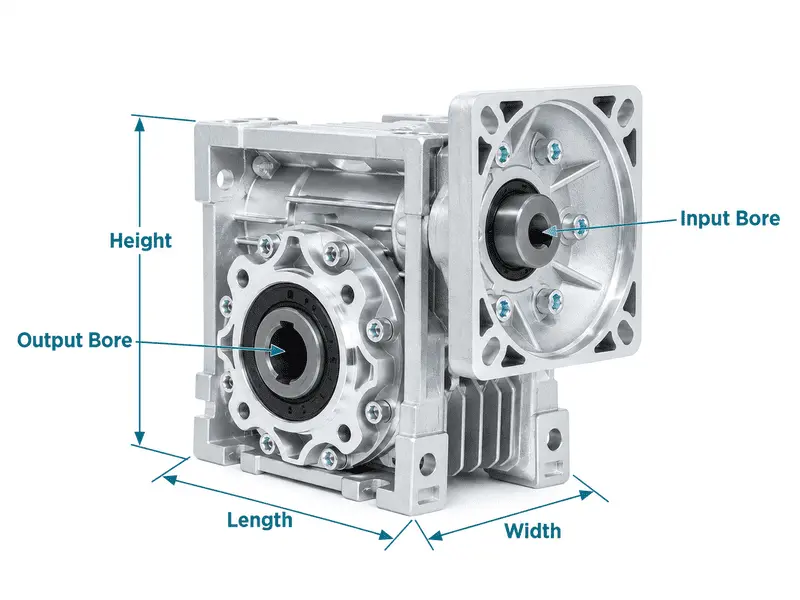

Main dimensions and shaft sizes for NMRV square flange worm gearbox models 030, 040, 050, 063,075 and 090, including center distance, bore sizes, overall dimensions and weight. Use the diagram to identify the input bore, output bore and overall dimensions.

Standard reduction ratios: 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1 and 100:1. 5:1 available on request.

NMRV Square Flange Gearbox Size & Dimensions

Model	Center Distance (mm)	Output Bore (mm)	Input Bore (mm)	Length (mm)	Height (mm)	Width (mm)	Weight (kg)
NMRV 030	30	14	9 / 11	81	97	58	1.2
NMRV 040	40	18	11 / 14	101	121.5	73	2.3
NMRV 050	50	25	11 / 14 / 19	121	144	87	3.5
NMRV 063	63	25	14 / 19 / 22 / 24	146	174	106	6.2
NMRV 063	75	25	19 / 22 / 24 / 28	174	205	114	6.2
NMRV 090	90	35	19 / 22 / 24 / 28	208	238	134	13

Note: Dimensions and weight are for reference only. Please request the confirmed drawing for final installation dimensions.

Compatible Motor Types

The NMRV square flange series can be matched with multiple motor types by selecting the appropriate flange size, input bore and mounting interface.

Brushed DC motor compatible with NMRV square flange worm gearbox

Brushed DC Motors

For brushed DC motor systems used in compact machinery, replacement and OEM projects.

Brushless DC motor compatible with NMRV square flange worm gearbox

Brushless DC Motors

For BLDC systems requiring compact right-angle transmission.

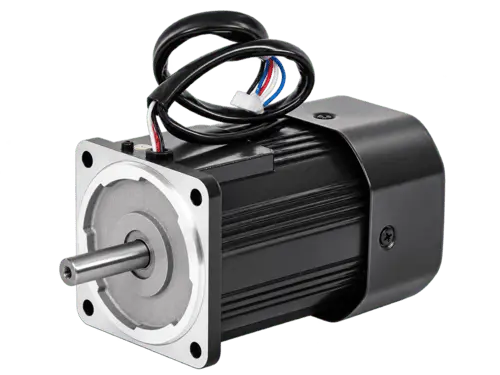

AC gear motor compatible with NMRV square flange worm gearbox

AC Gear Motors

For single-phase and three-phase AC gear motor drive systems.

Stepper motor compatible with NMRV square flange worm gearbox

Stepper Motors

Square flange matched to common stepper motor frame sizes.

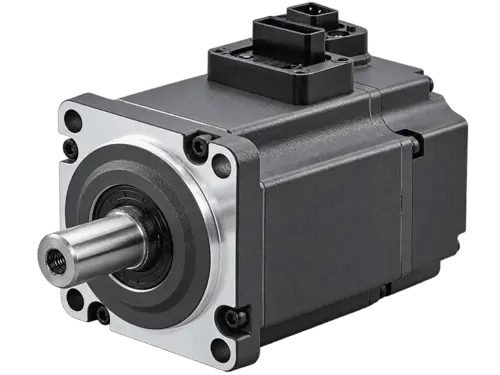

Servo motor compatible with NMRV square flange worm gearbox

Servo Motors

For servo systems, including selected low-backlash configurations.

Three-phase induction motor compatible with NMRV square flange worm gearbox

Three-Phase Induction Motors

Matched to three-phase induction motors with suitable flange and input bore.

How to Select an NMRV Gearbox

Select the gearbox by confirming the required size, reduction ratio, motor flange, input bore and output configuration.

Model / Size

Choose NMRV 030, 040, 050, 063 or 090 according to the required torque, installation space and motor size.

Ratio

Select the required reduction ratio from 7.5:1 to 100:1. A 5:1 ratio is available on request.

Motor Flange

Match the square motor flange to your motor frame and mounting dimensions.

Input Bore / Keyway

Confirm the motor shaft diameter and keyway size to match the gearbox input bore.

Output Configuration

Choose hollow shaft, single or double output shaft, output flange or torque arm according to the machine layout.

Replacing an existing gearbox? Share your current model, nameplate photo, mounting dimensions and application requirements. Our engineers can help confirm a matching replacement.

NMRV Gearbox Applications

NMRV worm gearboxes are widely used in compact machinery requiring right-angle transmission, high reduction ratios and flexible motor matching across different installation conditions.

Packaging Machinery

Compact right-angle transmission for feeding, sealing, indexing and packaging mechanisms.

NMRV worm gearbox drive on a belt conveyor, line drawing

Conveyors

Suitable for belt, roller and chain conveyors where compact installation is required.

NMRV worm gearbox drive on an automated indexing station, line drawing

Feeding and Dosing Equipment

Compact right-angle drives for feeders, hoppers and dosing mechanisms.

AC gear motor application for industrial automation and compact transfer systems

Automation Equipment

Right-angle transmission for transfer, indexing, positioning and assembly equipment.

AC gear motor application for labeling machines and bottle conveying lines

Labeling and Filling Machines

Suitable for feeding, positioning and applicator drives in labeling and filling equipment.

ZYT09F High Torque Drive for Custom Automation Equipment

OEM Machinery

Flexible motor and flange matching for custom equipment and replacement projects.

NMRV Worm Gearbox Frequently Asked Questions

Start with the required output torque and reduction ratio, then confirm motor power, installation space, motor flange, input bore and output configuration. Share your motor specifications and application requirements, and our engineers can help confirm a suitable NMRV 030, 040, 050, 063 or 090 model.

Yes. The square flange version can be matched with AC gear motors, brushed DC motors, brushless DC motors, stepper motors, servo motors and three-phase induction motors. Motor flange, input bore and keyway are selected according to the motor mounting dimensions and shaft size. Share your motor model or drawing so we can confirm compatibility.

Yes. Selected configurations using a CuSn10Pb1 tin bronze worm wheel can achieve backlash down to approximately 8 arcmin. Availability depends on gearbox size, ratio and configuration. Share your servo motor model, required ratio and application requirements so we can confirm the suitable option.

Standard NMRV gearbox configurations are typically available within 3–7 working days. Custom motor flanges, input bores, output configurations or low-backlash versions may require additional production time depending on the specification and quantity.

Need a Custom NMRV Square Flange Worm Gearbox?

Share your required ratio, motor flange size, input bore, output configuration and application requirements. You can also send a motor drawing or the nameplate of the gearbox you want to replace. Our engineers will recommend a matching NMRV gearbox and motor solution.
