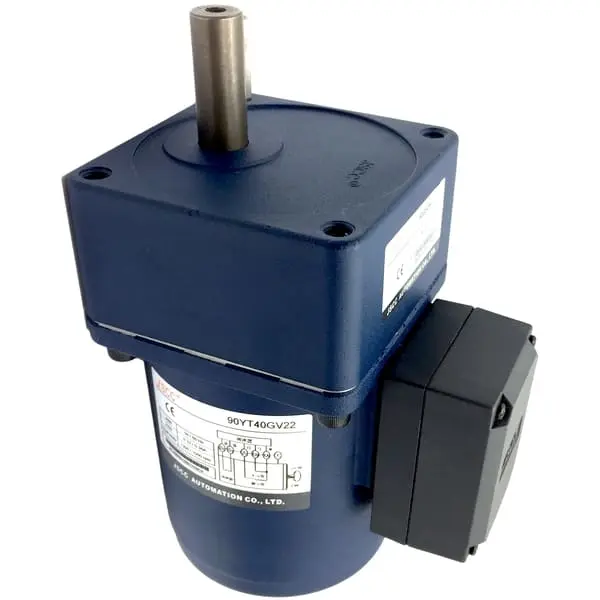

90YT40GV22 + 90GK5H 40W AC Speed Control Gear Motor

40W AC speed control gear motor with 90GK5H standard gearbox and 5:1 ratio. Built-in speed feedback enables closed-loop speed control for stable operation, with a speed range of 90–1400 r/min at 50Hz and 90–1600 r/min at 60Hz. Suitable for conveyors, packaging machinery and industrial automation.

Closed-Loop Speed Control

Low-Noise Gearbox

5:1 Gear Ratio

IP54 Protection

Request a Quote Downloads & CAD

Overview

The JSCC 90YT40GV22 is a 40W single-phase AC speed control motor with built-in speed feedback for closed-loop speed regulation. Paired with the 90GK5H standard gearbox at a 5:1 ratio, it provides reduced output speed and increased torque for industrial equipment. The motor supports smooth speed adjustment, fast stopping and 0–10V analog speed control when used with a compatible controller. The standard motor shaft diameter is 12 mm, while 12 mm and 15 mm gearbox shaft options are available to suit different installation requirements. Its 90 × 90 mm frame makes it suitable for conveyors, packaging machinery, food processing equipment and other industrial automation applications.

Specifications

Model	90YT40GV22
Output Power	40W
Voltage	220V
Frequency	50 / 60Hz
Poles	4
Speed Control Range	90–1400 r/min 50Hz / 90–1600 r/min 60Hz
Starting Torque	220 mN·m 50Hz / 220 mN·m 60Hz
Rated Current	0.32A 50Hz / 0.36A 60Hz
Insulation Class	Class H
Protection	IP54
Rated Time	Continuous
Motor Type	Single-phase AC Speed Control Motor

Gearbox & Performance

Gear Ratio	3	5	7.5	10	15	20	30	50	60	75	100	180
Output Speed 50Hz r/min	467	280	187	140	93	70	47	28	23	19	14	7.8
Allowable Torque 50Hz N·m	0.63	1.05	1.57	2.09	3.14	4.18	6.27	10.5	12.5	15.7	20	20
Output Speed 60Hz r/min	533	320	213	160	107	80	53	32	27	21	16	8.9
Allowable Torque 60Hz N·m	0.63	1.05	1.57	2.09	3.14	4.18	6.27	10.5	12.5	15.7	20	20

Options: The 90YT40GV22 motor is compatible with standard, intermediate, right-angle solid shaft and right-angle hollow shaft gearboxes. The standard shaft diameter for this 40W model is 12 mm, while 12 mm and 15 mm gearbox shaft options are available according to installation requirements. Gear ratios from 3:1 up to 1800:1 can be configured for different output speed and torque requirements. Single-phase 110V and custom voltage options are available upon request.

Downloads & CAD

Download the 3D CAD model and dimension drawing for this AC gear motor.

3D CAD Model

Download 3D CAD

Dimension Drawing

Download Drawing

Applications

Conveyors

Packaging machinery for gear motor applications

Packaging Machines

Food Processing

Industrial robotic arm for automation applications

Industrial Automation

Selection & Service

Voltage options: 110V / 220V
0–10V analog speed control
Closed-loop speed control
Gear ratios: 3:1–1800:1
Multiple gearbox configurations
Gearbox shaft options: 12 mm / 15 mm

FAQ

Yes. The motor has built-in speed feedback and works with a compatible controller to maintain stable speed through closed-loop control.

Gear ratios from 3:1 up to 1800:1 are available, depending on the selected gearbox configuration.

Yes. Single-phase 110V and 220V versions are available, and custom voltage options can also be provided upon request.

The 40W motor is supplied with a 12 mm shaft as standard. Both 12 mm and 15 mm gearbox shaft options are available. The motor can be paired with standard, intermediate, right-angle solid shaft and right-angle hollow shaft gearboxes to suit different installation requirements.

Yes. The round shaft version is model 90YT40DV22. It is a 40W AC speed control motor without a gearbox and can be used for direct coupling, custom machinery, or applications with an external transmission system.
