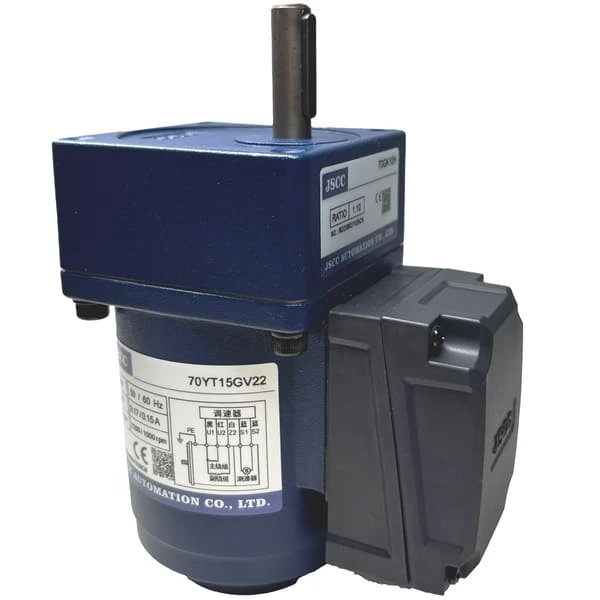

70YT15GV22 + 70GK10H 15W AC Speed Control Gear Motor

15W AC speed control gear motor with 70GK10H standard gearbox and 10:1 ratio. Built-in speed feedback enables closed-loop speed control for stable operation, with a speed range of 90–1400 r/min at 50Hz and 90–1600 r/min at 60Hz. Suitable for compact conveyors, packaging machinery and industrial automation.

Closed-Loop Speed Control

Low-Noise Gearbox

10:1 Gear Ratio

IP54 Protection

Request a Quote Downloads & CAD

Overview

The JSCC 70YT15GV22 is a 15W single-phase AC speed control motor with built-in speed feedback for closed-loop speed regulation. Paired with the 70GK10H standard gearbox at a 10:1 ratio, it provides reduced output speed and increased torque for compact industrial equipment. The motor supports smooth speed adjustment, fast stopping and 0–10V analog speed control when used with a compatible controller. Its compact 70 × 70 mm frame makes it suitable for small conveyors, packaging machinery, food processing equipment and other industrial automation applications.

Specifications

Model	70YT15GV22
Output Power	15W
Voltage	220V
Frequency	50 / 60Hz
Poles	4
Speed Control Range	90–1400 r/min 50Hz / 90–1600 r/min 60Hz
Starting Torque	80 mN·m 50Hz / 75 mN·m 60Hz
Rated Current	0.17A 50Hz / 0.15A 60Hz
Insulation Class	Class H
Protection	IP54
Rated Time	Continuous
Motor Type	Single-phase AC Speed Control Motor

Gearbox & Performance

Gear Ratio	3	5	7.5	10	15	20	30	50	60	75	100	180
Output Speed 50Hz r/min	467	280	187	140	93	70	47	28	23	19	14	7.8
Allowable Torque 50Hz N·m	0.23	0.38	0.57	0.76	1.14	1.52	2.28	3.80	4.56	5	5	5
Output Speed 60Hz r/min	533	320	213	160	107	80	53	32	27	21	16	8.9
Allowable Torque 60Hz N·m	0.21	0.36	0.53	0.71	1.07	1.43	2.14	3.56	4.28	5	5	5

Options: The 70YT15GV22 motor is compatible with standard 70GK gearboxes with ratios from 3:1 to 180:1. For higher reduction ratios, a 70GM10 intermediate gearbox can be installed between the motor and gearbox to increase the total reduction ratio by 10 times. Single-phase 110V and custom voltage options are available upon request.

Downloads & CAD

Download the 3D CAD model and dimension drawing for this AC gear motor.

3D CAD Model

Download 3D CAD

Dimension Drawing

Download Drawing

Applications

Conveyors

Packaging machinery for gear motor applications

Packaging Machines

Food Processing

Industrial robotic arm for automation applications

Industrial Automation

Selection & Service

Voltage options: 110V / 220V
0–10V analog speed control
Closed-loop speed control
Gear ratios: 3:1–1800:1
Standard & intermediate gearboxes
Motor selection & customization support

FAQ

Yes. The motor has built-in speed feedback and works with a compatible controller to maintain stable speed through closed-loop control.

Standard 70GK gearbox ratios from 3:1 to 180:1 are available. A 70GM10 intermediate gearbox can be added to increase the total reduction ratio by 10 times for applications requiring lower output speed and higher torque.

Yes. Single-phase 110V and 220V versions are available, and custom voltage options can also be provided upon request.

The 70YT15GV22 can be paired with standard 70GK gearboxes and a 70GM10 intermediate gearbox for higher reduction ratios.

Yes. The round shaft version is model 70YT15DV22. It is a 15W AC speed control motor without a gearbox and is suitable for direct coupling, compact machinery and applications using an external transmission system.
